Seamark Inline 3D/CT X-ray Inspection Machine AXI9000

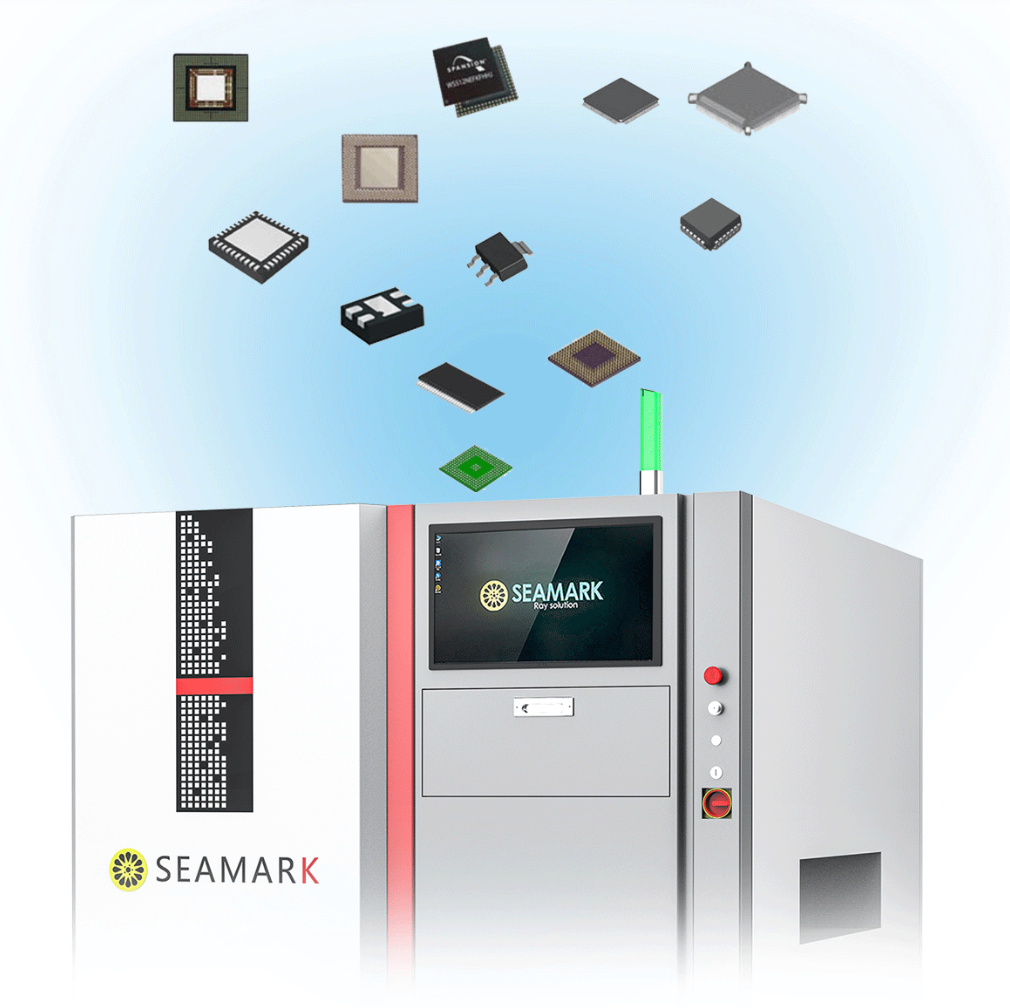

Seamark AX19000 is a high-speed CT-based X-ray fully automatic inspectionsystem, equipped with innovative self-developed intelligent inspectionsoftware, enabling high-speed 3D inspection. lt can inspect a widerange of components, including BGA, POP, LGA, QFP, CSP, CHIP, QFN, DIPinserted components, lGBT, and more. lt is capable of detecting defectssuch as missing components,misalignment, solder bridging, opensolder joints, insufficient solder, voids, pillow effect, and other issues.

Quantity

Descriptions

key features

Unique 3D/CT reconstruction technology, the inspection speed is as fast as lessthan 2 seconds per FOV.

Adopts a three-layer gantry structure with linear motors, equipped with agrating scale: This enables high-speed CT scanning.

The number of projections and resolution can be flexibly adjusted: This meetsthe inspection needs of various scenarios.

Innovative self-developed intelligent inspection algorithms: These algorithmsenable high-precision Inspection of defects such as cold solder joints, voidsand DlP fill rates.

Technical parameters

Seamark Inline 3D/CT X-ray Inspection Machine AXI9000
System Summary
Footprint	L1650W1950H1590mm
Machine Weight	4500KG
Power Supply	220V±10% 50-60Hz
Plywood Packing Size	L1900W2100H1800mm
Packing Weight	4700KG
Power Consumption	3.5KW
Sample Specification
Sample Size	5050mm-610510mm
Sample Thickness	0.4-5mm
Sample Height	Upper Part: ≤50mm； Lower Part: ≤40mm
Board Bending	±3mm
Conveyor Height	900±20mm
Max Loading Capacity	≤5Kg
X-ray Tube
Tube Type	Open Microfocus Transmitted RaySource
Tube Voltage	Max 130KV
Tube Current	Max 500μA
Max Output Power	65W
Micro Focus Size	12-100μm
Flat Panel Detector
Flat Panel Type	Amorphous Silicon Flat Panel Detector
Pixel Matrix	1536*1536
Resolution	5.5Lp/mm
Image Frame Rate	30fps
AD Conversion Digits	16bits

download brochure
