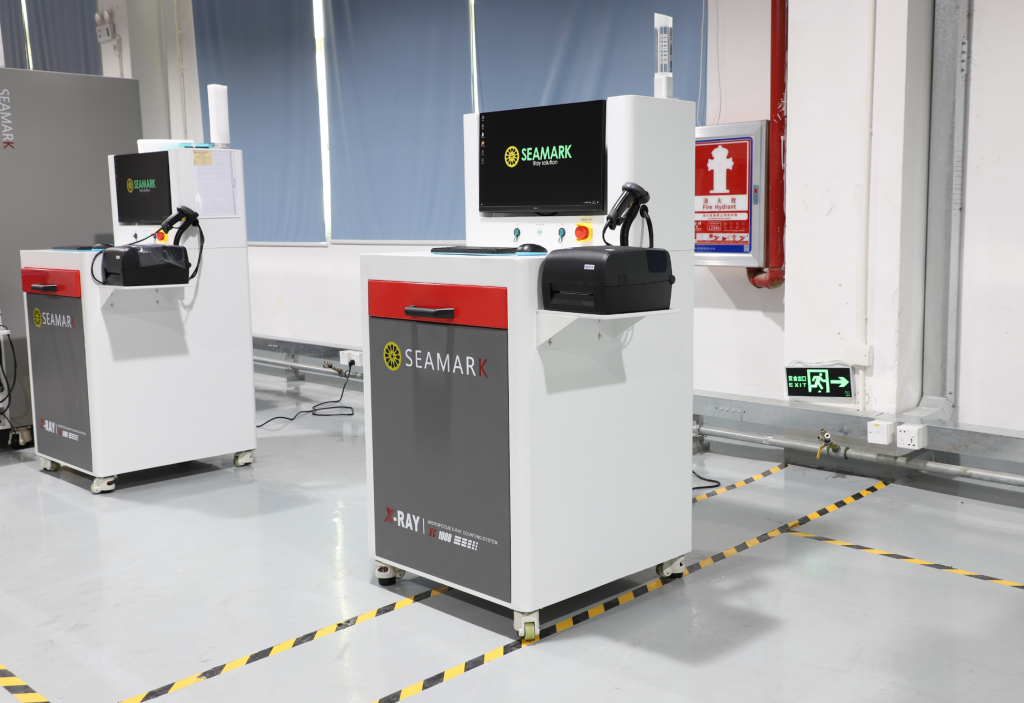

Seamark X-ray Component Counting Machine XC1000E

Seamark XC1000E Offline Component Counter uses X-ray fluoroscopic imaging technology. It is equipped with image algorithm software independently developed by Seamark Technology, incorporating deep learning (AI) capabilities. The system can quickly and accurately calculate the quantity of components in reels, and also supports data interaction with customer systems as well as automatic label printing. This significantly improves operational efficiency, reduces labor costs, and enables intelligent and automated warehouse management.

Descriptions
key Features
Small Foot Print
Various Material Compatible
Enhanced Accuracy
Powerful Database
System Integration
Recording Function
Technical parameters
Seamark Offline X-ray Component Counter XC1000E
System Summary
FootprintL738*W765*H1760mm
Machine Weight550KG
Power Supply220V±10% 50-60Hz
Plywood Packing SizeL940*W960*H1900mm
Packing Weight700KG
X-ray Tube
Tube TypeReflective Sealed Micro-focus X-ray Source
Tube Voltage30-80KV
Tube Current0-700uA
Micro Focus Size100μm
Flat Panel Detector
Flat Panel TypeAmorphous Silicon Flat Panel Detector
Pixel Matrix3072*3072
Field of View427*427mm
Resolution3.6Lp/mm
Image Frame Rate1fps
AD Conversion Digits16bits
Others
Reel Diameter 7”-15”Tape Reel
Reel Height5-80mm
Minimum Component 008004
System DockingMES/ERP/WMS etc.
Counting Accuracy99.95%
